Alan Products

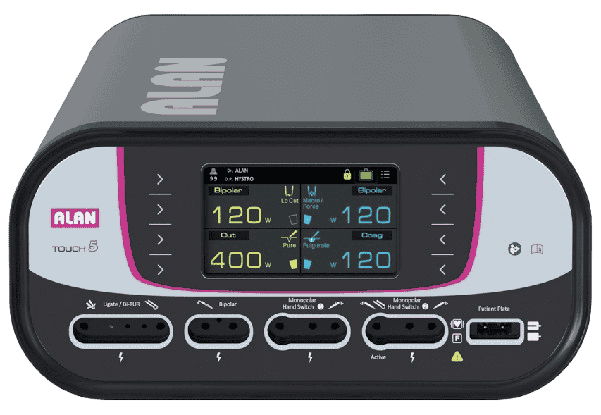

ALLIGATURE - Electro Surgical Generator (Touch 5)
Key Features & Specifications:
- Advanced microcontroller-based Electro Surgical Generator with Vessel Sealing System.
- 5-inch LCD touch screen + feather-touch buttons for easy operation.
- Sockets: 2 Monopolar, 1 Bipolar, and Dedicated Vessel Sealing output.
- Safety: Capacitive Patient Plate, isolated outputs, startup self-test, current meter in Bipolar & Seal modes.
- Dual Surgeons: Supports simultaneous monopolar coagulation.
- Adjustable HF power via screen or pencil; 99+1 user memory slots.
- Modes: Wide range of Monopolar Cut, Monopolar Coag, Bipolar Cut, Bipolar Coag, and Vessel Sealing up to 7mm vessels.
- Power: 400W max; Input 230 VAC ±20%, 50Hz.
- Upgradeable: Compatible with Argon Plasma & Smoke Evacuator.
- Compact: 320×160×360 mm, ~7 Kg.

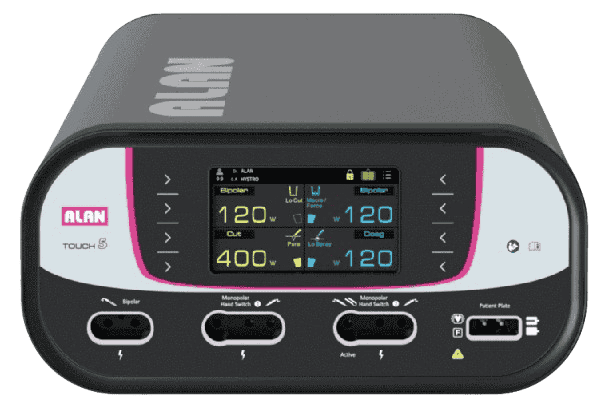

COMBI - Electro Surgical Generator (Touch 5)
Key Features & Specifications:
- Microcontroller-based generator for open & laparoscopic surgeries.
- 5-inch LCD touch screen + feather-touch buttons.
- Sockets: 2 Monopolar & 1 Bipolar (handswitch/footpedal).
- Safety: Capacitive Patient Plate, isolated outputs, startup self-test, current meter in Bipolar mode.
- Dual Surgeons: Simultaneous monopolar coagulation.
- Adjustable HF output via screen or pencil; 99+1 memory slots.
- Modes: Multiple Monopolar & Bipolar cutting/coagulation options.
- Power: 400W max; Input 230 VAC ±20%, 50Hz.
- Upgradable: Argon Plasma & Smoke Evacuator systems.
- Compact: 320×160×360 mm, 7 Kg.

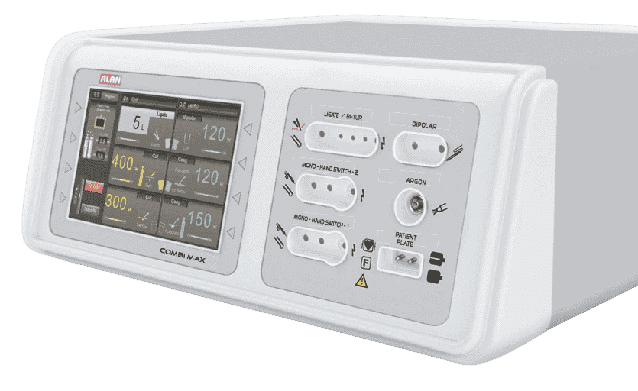

COMBI MAX - Electro Surgical Generator
Key Features & Specifications:
- Microcontroller-based Energy Workstation for open, laparoscopic & endoscopic surgeries.
- 7″ TFT touch screen with push-button controls.
- Outputs: Monopolar, Bipolar, Vessel Sealing, Bi-TUR (Saline TURP) & Argon Plasma Coagulation.
- Safety: PPCM, HF leakage monitoring, startup self-test, touchscreen auto-lock, port ON/OFF.
- Vessel Sealing: Seals up to 7 mm, 5 ligation levels + 2 fast ligation modes, tissue feedback with auto power control.
- Modes: Multiple Monopolar, Bipolar, Bi-TUR, EndoCut, APC.
- Memory: 99+1 user profiles, auto-restore last settings.
- Power: 400 W max.
- Dimensions: 420×380×170 mm, ~8 Kg.
- Input: 220/230 VAC ±20%, 50/60 Hz.
ALTRASCAL - Ultrasonic Surgical Generator
Key Features & Specifications:
- Microcontroller-based Energy Workstation for open, laparoscopic & endoscopic surgeries.
- 7″ TFT touch screen with push-button controls.
- Outputs: Monopolar, Bipolar, Vessel Sealing, Bi-TUR (Saline TURP) & Argon Plasma Coagulation.
- Safety: PPCM, HF leakage monitoring, startup self-test, touchscreen auto-lock, port ON/OFF.
- Vessel Sealing: Seals up to 7 mm, 5 ligation levels + 2 fast ligation modes, tissue feedback with auto power control.
- Modes: Multiple Monopolar, Bipolar, Bi-TUR, EndoCut, APC.
- Memory: 99+1 user profiles, auto-restore last settings.
- Power: 400 W max.
- Dimensions: 420×380×170 mm, ~8 Kg.
- Input: 220/230 VAC ±20%, 50/60 Hz.
